Overview of CAD files & Drawings
| Connector | Example | Files |
|---|---|---|
| CF2 SMA straight |  | .STEP & .PDF |
| CF2 SMA non magnetic |  | .STEP & .PDF |
| CF2 SMP straight |  | .STEP & .PDF |

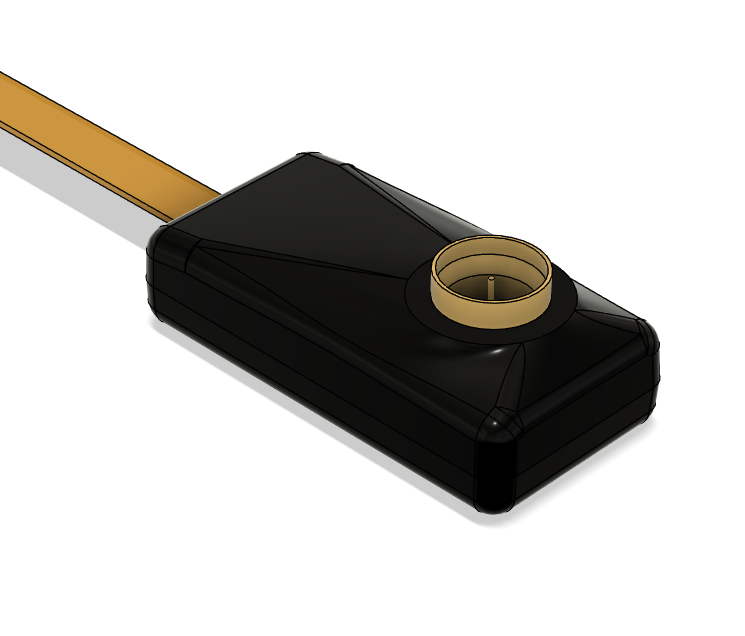

| CF2 SMP right angle (discontinued) |  | .STEP & .PDF |
| CF2 SMP right angle compact |  | .STEP & .PDF |
| CF2 SMPM straight |  | .STEP & .PDF |
| CF2 SMPM right angle |  | .STEP & .PDF |
| CF3 SMA |  | .STEP & .PDF |
| CF3 SMP |  | .STEP & PDF |
